Bait Boat Wireless Colour Fish Finder Review: long-range sonar that actually keeps up with your bait boat

I’ve been using this TMC Bait Boat Wireless Colour Fish Finder for a few sessions now, mainly on a big stillwater where my usual castable sonar just doesn’t reach far enough. My bait boat can go way out, but my previous fish finder would lose signal long before that, which made it kind of pointless. This one is advertised with a 500m wireless range, so I wanted to see if it actually holds up once you’re on the bank, in the wind, with a boat that doesn’t always go in a straight line.

From the start, it’s clear this is not some polished big-brand gadget. The packaging and manual feel pretty basic, and the design looks a bit old-school. But in practice, I care more about signal stability, depth accuracy and fish detection than about having a fancy interface. I mainly fish carp, so I’m more interested in finding clean spots, depth changes and weed edges than seeing cartoon fish all over the screen.

Over several trips, I ran it side by side with a cheaper castable sonar and the depth sounder built into a mate’s boat. I used it on a medium-sized reservoir and a small syndicate lake with snaggy margins. I tested range, how fast it updates when the boat moves, how visible the screen is in daylight, and how well the fish ID and bottom contour functions actually help in choosing spots. I also pushed it a bit in terms of battery by doing long mapping runs around the lake.

Overall, it’s not perfect, but it does a lot of things right for the price. If you’re expecting a slick app and HD graphics like on high-end brands, you’ll be disappointed. If you just want a solid, long-range sonar that talks reliably to your bait boat, it’s honestly better than I expected. In the rest of the review I’ll go through the design, performance on the water, battery life, and whether I think it’s worth the money compared to other options I’ve tried.

Price-wise, this sits in that middle ground: not dirt cheap, but well below high-end branded marine fish finders with GPS and fancy mapping. For what you pay, you’re getting proper long-range wireless (up to 500m), a dedicated colour LCD screen, full sonar controls, and decent build quality. If you already own a bait boat and you’re frustrated with the limited range of castable sonars or phone-based systems, this starts to make a lot of sense.

Compared to popular castable units that rely on your phone, the main advantages I see are:

• Much better range – realistically several hundred metres with stable signal.
• No need to risk your phone near the water or drain its battery all day.
• More “set and forget” – it just sits on your table showing depth and fish while you fish.

For me, as someone who mainly wants to find clear spots, depth changes and signs of fish for carp fishing at medium to long range, the value is pretty strong. It does exactly that, reliably, without me worrying about my phone dying or losing connection at 100m. If you fish only small lakes where you can cast a sonar or you don’t use a bait boat, then it’s probably overkill and not the best value – a cheaper castable or a simple echo sounder might be enough.

So in terms of value for money, I’d call it good but not unbeatable. You’re paying for function, not brand or polish. If you specifically need long-range bait boat sonar, the price feels justified. If you just want a general fish finder and don’t care about 500m range, you might find better-looking or more feature-rich options at a similar cost.

Design-wise, this thing looks a bit like older boat fish finders rather than the sleek modern stuff. The portable base with the 2.4" screen is quite compact and light, and it sits nicely on a tackle box lid or a bivvy table. The plastics feel fairly basic, but not flimsy. It’s clearly made to be functional, not pretty. The buttons are physical, with a simple D-pad style navigation and a few dedicated keys. I actually prefer this to touchscreens when my hands are wet or cold – you can operate it with thin gloves pretty easily.

The wireless signal box is a separate little unit with an antenna you screw on. It’s not huge, but it does mean you now have two boxes on the bank: the display and the receiver. I ended up keeping them together on a small tray so I don’t kick them over in the night. The transducer itself is a small bullet-shaped sensor you mount on the bait boat. The supplied rubbers and fittings are okay, but you do need to take a bit of time to position it so it’s always in the water, even when the boat is moving fast or in choppy conditions. Once fitted properly, I didn’t have any issues with it tilting or coming loose.

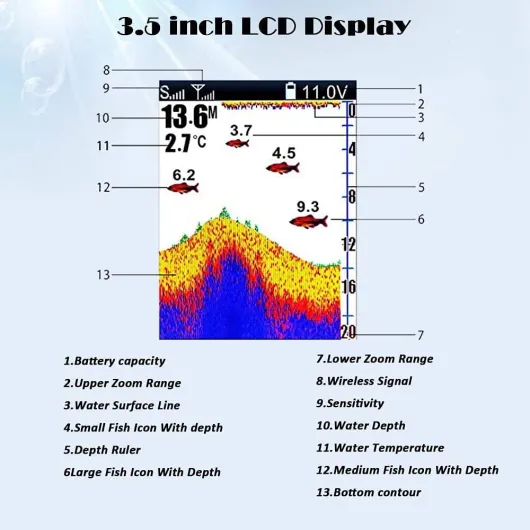

The screen layout is pretty standard: depth on one side, temperature, battery indicators, and then the main sonar view with bottom contour and fish symbols if you have fish ID turned on. You can tweak contrast and backlight, which helps a lot. In bright sunlight, it’s readable but not perfect; you sometimes have to tilt it or shade it with your hand. At night or in low light, it’s actually very clear – the backlight and simple graphics are easy on the eyes, and the buzzer alarms mean you don’t have to stare at it non-stop.

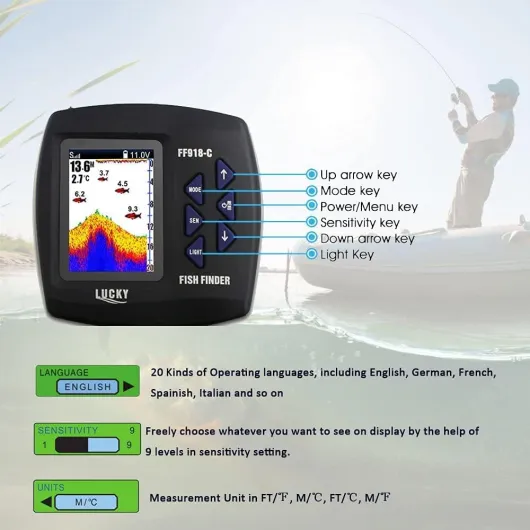

In terms of ergonomics, the menus are simple but a bit dated. You have to click through to reach some settings instead of having quick access. After a couple of sessions, muscle memory kicks in and it’s fine. I’d say the design is functional and a bit clunky, but once you’re set up, you don’t think about it much – it just sits there and does its job. If you’re expecting sleek, touchscreen, phone-app style design, this will feel old, but for rough use on the bank, that’s not necessarily a bad thing.

The unit is battery powered, and this is one area where you need to be a bit organised. There’s no fancy built-in rechargeable pack; you’re dealing with separate power cables and optional battery connections (depending on how you choose to power it). On my sessions, I ran the display and receiver off a small 12V lithium pack I already use for other gear, and that worked fine. With medium backlight and the sonar running continuously, I got through long day sessions with plenty of juice left. For a full weekend, I just topped up the battery overnight with a power bank and didn’t run into any issues.

The battery alarm feature is actually quite useful. It gives you a warning before things get critical, so you’re not suddenly blind when the boat is halfway across the lake. The display shows battery status, and the buzzer can be set to alert you, which I prefer to checking constantly. If you’re using separate batteries for the sonar sensor or receiver, you really want to test your setup at home first to understand how long they last under your typical settings (brightness, sensitivity, etc.).

One downside: because it’s not an integrated, modern rechargeable system, you do have more cable clutter and you need to think about where to stash the power source so it doesn’t get wet or knocked over. Also, if you forget your specific cables or the right battery, you’re stuck. With a castable sonar that runs on a simple built-in battery and charges via USB, life is simpler. Here, you trade that simplicity for the extended range and standalone screen.

In practice, once I had my routine sorted – one small 12V battery dedicated to this and mounted in a little dry box – I stopped thinking about it. Power consumption seems reasonable; it doesn’t drain things crazy fast, even with alarms and backlight. I’d rate the battery side as decent but a bit old-fashioned. It works, but you need to plan your power setup rather than just plugging in a USB cable like with more modern gadgets.

I haven’t owned it for years, but I’ve already put it through some fairly rough use: damp bivvy, light rain, muddy banks, being chucked in and out of the car. The plastic casing of both the display and receiver feels basic but reasonably tough. It’s not premium, but it doesn’t creak or feel like it’s going to fall apart. The buttons still click properly after being used with wet and slightly gritty fingers. I’ve wiped it down with a damp cloth a few times and had no issues with fogging or water getting under the screen.

That said, I wouldn’t treat it like a fully waterproof marine unit. There’s no clear IP rating advertised, so I assume it’s splash-resistant at best, not submersible. In drizzle and light rain under a bivvy or umbrella, it was fine. In heavy rain, I’d definitely cover it or put it in a shelter, just to be safe. The transducer and cables seem solid enough – the rubber fittings held up on the boat, and the cable didn’t show any signs of kinking or damage after several outings.

The antenna on the receiver is a bit of a weak point physically. It sticks out and could easily be bent or snapped if you’re clumsy or if it gets caught in something. I ended up always removing it for transport and only screwing it on once I’m set up on the bank. That’s one extra step, but it’ll probably save you from breaking it. The connectors for power and sonar are fairly standard and feel snug, but like with all this kind of kit, you’ll want to avoid yanking them by the cable.

Overall, in terms of durability, I’d say it’s good enough for regular anglers who look after their gear reasonably well. It’s not bombproof, but it doesn’t feel like a toy either. If you’re rough with your stuff or fish a lot in heavy rain and harsh conditions, you’ll probably want to baby it a bit more or add some protection (small hard case, dry box, etc.). For normal weekend use, I don’t see any obvious red flags so far.

This is where things get interesting. The 500m wireless range is the big selling point, and I pushed it quite hard. On a large reservoir, I sent the bait boat as far as I’d ever dare, and the signal stayed solid way beyond what my castable sonar can manage. I didn’t measure exactly with a rangefinder, but we’re clearly talking several hundred metres. I only started to see occasional dropouts when the boat was almost a speck, and even then the connection usually came back quickly. In normal fishing distances (100–300m), the signal was stable the whole time.

Depth readings were consistent with my mate’s built-in boat sounder and with known features on the lake. It handled depth changes and slopes well – you can clearly see drop-offs, ledges and gradual shelves. The 45° sonar cone is wide enough to give you a good picture but not so wide that it becomes vague. The zoom function is actually quite handy when you’re trying to inspect the bottom area closely, especially around the last metre or two above the lakebed. The bottom contour display helps you spot silt vs harder areas: you don’t get fancy bottom hardness graphs, but you can see changes in the thickness and intensity of the bottom line.

On the fish detection side, it’s decent but you need to use your brain. The fish ID symbols (large/medium) are okay for a quick glance, but like most fish finders, they sometimes mark clutter or weed as fish if the sensitivity is too high. I found it better to dial the sensitivity down a bit and look at the raw arches and marks rather than rely purely on the icons. When set up like that, it helped me find fish-holding zones, especially around drop-offs and near weed beds, rather than chasing every single icon.

Response time is good enough to use the bait boat in real time. When I moved the boat across a feature, the screen updated quickly enough that I could stop the boat exactly at the edge of a bar or at the start of a deeper hole. There is a tiny lag, but nothing that ruins usability. Overall, in terms of pure performance on the water, it does the job very well for typical carp/coarse fishing scenarios. It’s not as advanced as high-end marine units, but for a bait boat user who wants reliable range and clear depth info, it’s pretty solid.

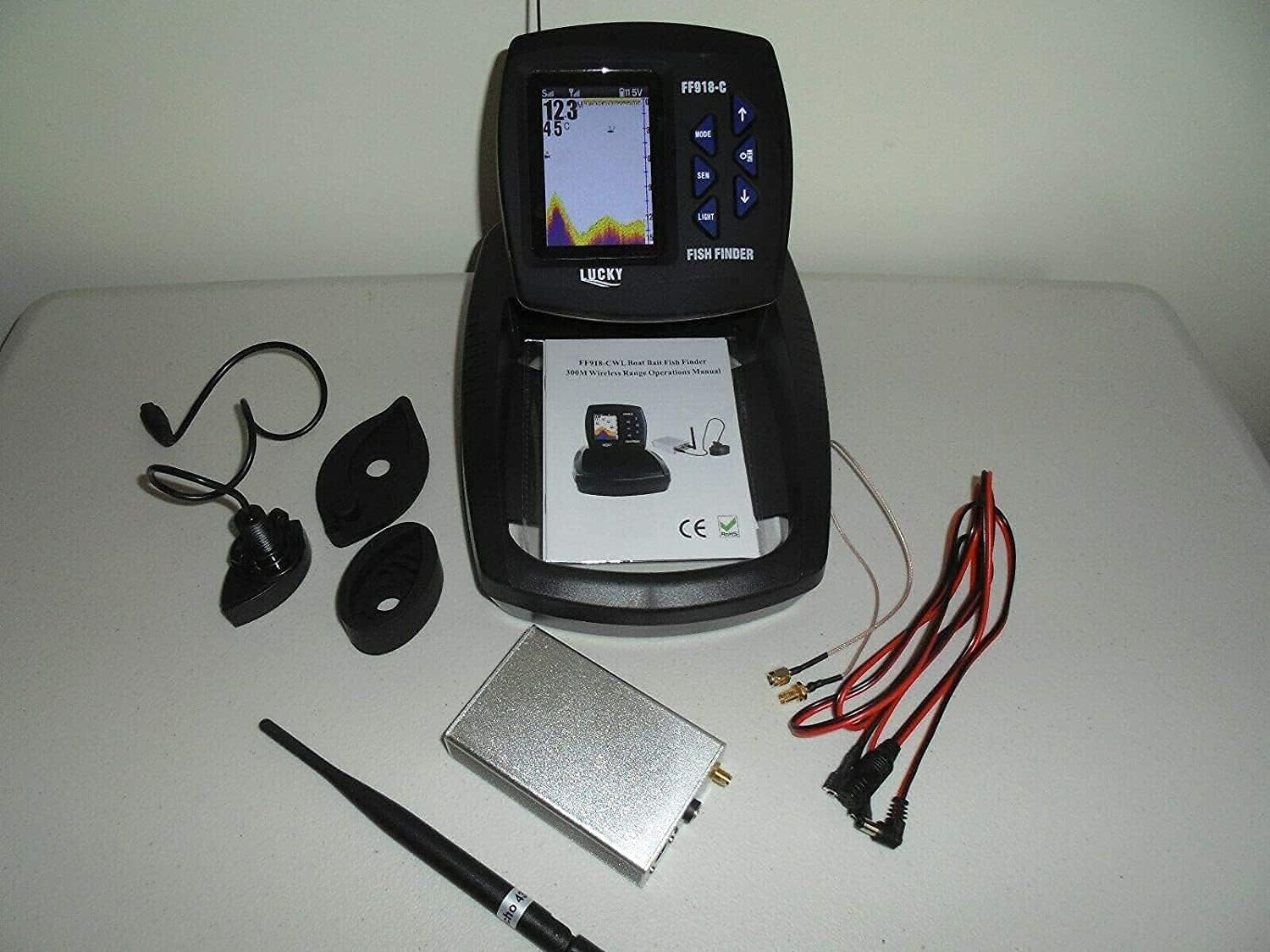

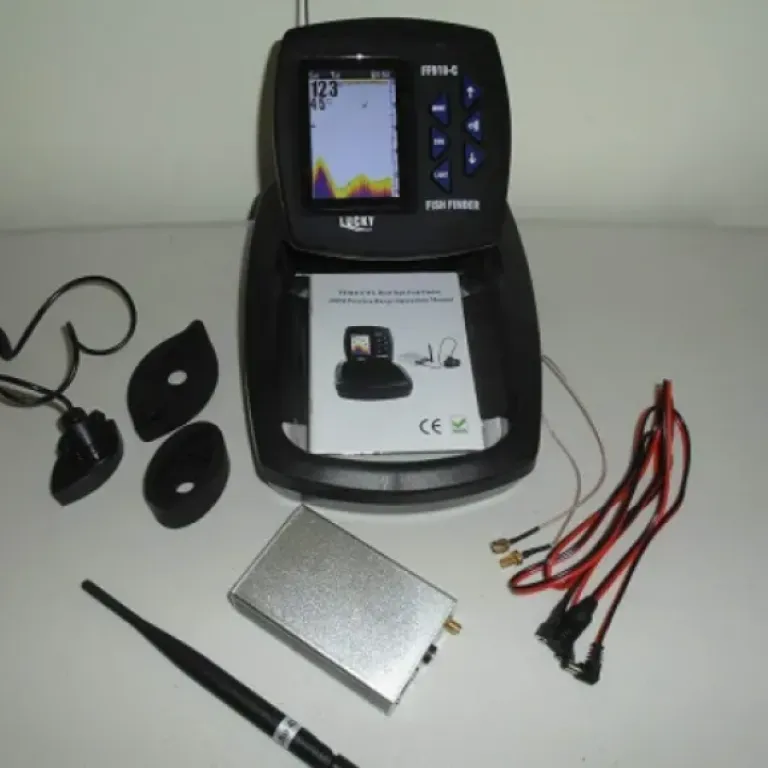

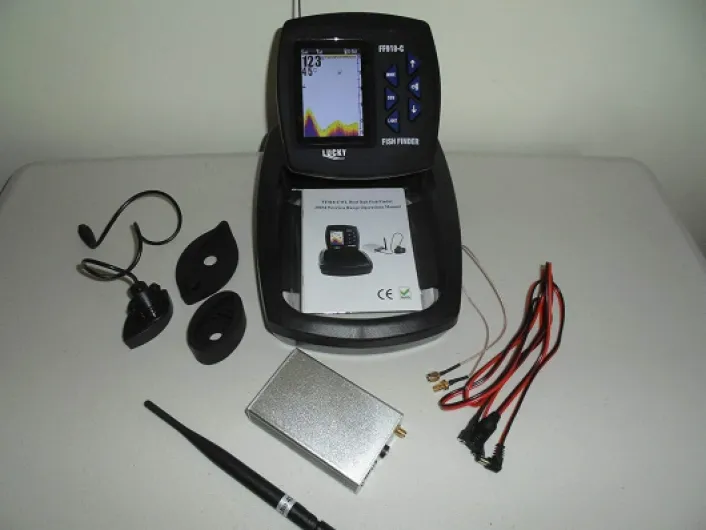

In the box you get quite a few bits: the fish finder display on a portable base, the wireless signal box, an antenna to screw onto that box, the sonar sensor (the bit that goes on the bait boat), power cable, alternative battery cables, and some fitting rubbers for the sensor. So it’s not one compact unit like a castable sonar; it’s more like a small system you have to set up properly on the bank. The manual is basic but usable – the English is a bit clunky, but you can work out what each menu item does without too much pain.

The screen is listed as a 2.4" colour LCD with 4-level grayscale, 160 x 132 resolution. On paper, that sounds a bit dated, and yes, it’s not HD, but for depth and structure it’s fine. You get the standard fish finder features: sensitivity adjustment, automatic and manual depth range, zoom, depth alarm, fish alarm with large/medium fish ID, bottom view settings, contrast, unit choice (metres/feet, °C/°F), battery alarm, buzzer and backlight settings. It’s basically a compact version of a basic boat sounder, adapted for wireless use with a bait boat.

One important thing: the sonar operates at 200 kHz with a 45° beam angle and a depth range from 0.7m to 100m (2–328 ft). In practice, that’s more than enough for most carp and coarse fishing situations, even on big reservoirs. It also has a temperature sensor in the transducer, which is handy for seeing surface water temp changes across the lake. The claimed wireless range is up to 500m, but as always, that’s ideal conditions, no interference, line of sight, etc.

Overall, the presentation is pretty straightforward: this is a functional tool, not a gadget to impress your mates with flashy graphics. It gives you the core sonar features you actually use on the bank. The downside is you have more cables and boxes to think about compared to a simple castable, but the upside is you get proper range and a dedicated screen that doesn’t drain your phone battery.
