CO LIGHT 20 Inch LED Light Bar Review: bright budget bar for trucks and off-road, with a few trade-offs

I put this CO LIGHT 20-inch LED light bar on a mid-size pickup that I use for night driving on backroads and some light off-road. I wasn’t looking for something fancy, just something bright enough to see deer and obstacles earlier than with stock headlights, without spending as much as the big-name brands. On paper, this bar checks a lot of boxes: 20 inches, 4 rows, 6500K, around 8000 lumens, IP68, and compatible with 9–30V so it works on most trucks, SUVs, ATVs, and even boats.

In real use, it’s pretty simple: it’s bright, especially for the price, but it’s not perfect. The beam is more of a big wall of white light than a super clean spot/flood pattern. It definitely lights up the road and the sides, but it’s not as controlled as higher-end bars I’ve tried. Depending on what you need, that might be fine or a bit annoying. For trail riding and work sites, it’s good. For fast highway use, I found it a bit too scattered.

I installed it with a basic wiring harness and a relay (not included). Setup wasn’t hard if you’re used to adding accessories, but a total beginner might need a YouTube tutorial or a friend. Once wired, it fired up right away, no flicker, no weird color spots. The light is a cold white (around 6500K as advertised), so it looks modern but can feel a bit harsh in fog or dust.

Overall, my first impression after a couple of weeks was: decent budget light bar that gets the job done, with some compromises on beam quality and finishing details. If you expect premium build and super clean optics, this isn’t it. If you just want a bright bar for occasional off-road or work use without killing your wallet, it’s pretty solid. The rest of the review goes into details: design, performance, durability, and if it’s actually worth the money.

For what it costs, this CO LIGHT 20-inch bar sits in that middle ground between no-name ultra-cheap lights and the big premium brands. In terms of raw brightness per dollar, it’s good value. You get a lot more usable light than with tiny pods or older halogen work lights, and you don’t have to spend the same money as you would on the big off-road brands. If you only use it occasionally—for weekend off-road trips, farm tasks at night, or as a backup work light—the price-performance ratio is pretty attractive.

Where the value drops a bit is if you start adding what’s missing. There’s no wiring harness, no relay, no switch, and the mounting hardware is basic. If you have nothing and need to buy a full harness and better brackets, the total bill starts creeping up. At that point, you might want to compare it with mid-range bars that come as complete kits. Also, the beam control and finish aren’t on the same level as more expensive options, so if you care a lot about glare control and long-term corrosion resistance, spending more might save you headaches later.

Compared to other budget bars I’ve tried, this one sits a bit above the absolute cheapest stuff. The brightness felt stronger and more consistent, and the housing quality seemed better than the bargain-bin light I previously ran on an ATV, which fogged up after the first winter. So, you’re paying a little more than rock-bottom, but you’re also getting a bit more reliability and punch.

In short, good value if you’re okay doing your own wiring, don’t mind a basic mounting system, and mainly care about getting a lot of light out front. Less good value if you want a polished kit, top-notch optics, and zero tinkering. For a work truck, farm rig, or budget off-road build, it makes sense. For a high-end overland build where you’re already spending big on other gear, I’d probably step up to a more premium bar.

The first thing you notice is the 4-row layout. This thing is not slim. If you’re going for a low-profile look on your bumper or behind the grille, this bar looks a bit bulky. Personally, I don’t care much about looks on a work truck, but if you’re picky about aesthetics, a single- or double-row bar will look cleaner. That said, the 4 rows are what give it the extra punch in brightness, so it’s a trade-off between style and light output.

The housing is a rectangular block of aluminum with cooling fins at the back. Nothing fancy, but functional. The front lens is clear, and the reflectors inside are split between more focused segments and more spread ones, which is how they create the spot/flood combo. The finish is a standard black coating. On mine, the finish was mostly clean, but I did notice a couple of small imperfections around the edges of the housing. Nothing that affects performance, but it reminds you this is a budget-friendly product, not a high-end one.

The mounting system uses side brackets that bolt into the ends of the bar. It’s a basic rack-mount style. You can adjust the tilt up and down, but there’s not a ton of sideways adjustment unless you get creative with how you mount the brackets. For a 20-inch bar, that’s usually enough. Once tightened, it stayed in place even after a couple of bumpy dirt roads. I checked the bolts after a week; they were still snug, but I’d recommend some thread locker if you plan to do heavy off-road.

In terms of overall design, I’d describe it as functional and a bit chunky. It looks like what it is: a budget 4-row bar focused on throwing a lot of light rather than looking sleek. If your main goal is lighting up a trail, a work site, or a field, the design is fine. If you’re trying to build a show truck where looks matter more than raw light, this probably won’t be your first choice.

The main material here is die-cast aluminum for the housing, which is pretty standard for light bars in this range. It gives it a solid feel without being overly heavy. When you pick it up, it doesn’t feel hollow or flimsy. The back has a multi-layer heat sink design, basically a stack of fins to increase surface area. It’s not the prettiest machining I’ve seen, but it’s functional and does what it’s supposed to do: move heat away from the LEDs.

The front lens appears to be polycarbonate (plastic), which is also common. It’s clear and doesn’t show any obvious distortion. After a few weeks with some gravel and road grime, I didn’t see any major scratches, just the usual light marks you’d expect. Over years, I’d expect some wear, but that’s the case with most plastic lenses unless they’re specially coated. For a bar in this price bracket, it’s acceptable.

The brackets are metal but feel like a lower-grade steel with a basic coating. They work, but they’re not the kind of hardware that gives you a premium impression. If you plan to mount this on something that sees a lot of weather, I’d either spray the hardware with a rust inhibitor or swap the bolts out for stainless ones. The included nuts and bolts are fine for initial mounting, but I wouldn’t be shocked if they show rust after a winter in salty conditions.

The wiring pigtail coming out of the bar is short but decent. The insulation felt okay, not too stiff, and the seal where the cable enters the housing looked properly grommeted. You still need to connect it to a harness with proper waterproof connectors if you want the whole setup to last. So from a materials standpoint: solid aluminum body, decent lens, average hardware. Nothing fancy, but nothing that screams "cheap junk" either. It matches the price point: budget-friendly but not toy-grade.

The bar is rated IP68, which basically means it should handle dust and immersion better than the usual basic stuff. I haven’t dunked it under water on purpose, but I did drive a few times in heavy rain and through some muddy puddles. So far, no water droplets or fogging inside the lens, which is a good sign. I checked after a cold night and a warmer morning, and I didn’t see condensation, so the seals seem decent on my unit.

The housing is all aluminum, and the cooling fins on the back help disperse heat. After running it for about an hour parked in the yard, it was hot to the touch but not crazy. No flickering, no dimming, so the claimed heat dissipation design seems to work well enough. They mention a 50,000-hour lifespan, which is the usual marketing number for LEDs; I can’t confirm that, but there’s nothing so far that makes me think it will fail quickly if used normally.

One thing I did notice is that the mounting hardware is pretty basic. It’s functional, but the bolts and brackets don’t feel super premium. I’d keep an eye on rust if you live in a salty or coastal area, and maybe upgrade the bolts to stainless steel if you’re picky. The bar itself hasn’t shown any corrosion yet, but we’re not talking about years of use here, just a handful of weeks and some rough weather.

In terms of vibration, mounted on a steel bumper, it held up fine over washboard dirt roads and a few potholes. No weird rattles, and the beam didn’t shake much. For heavy equipment or constant off-road abuse, I’d use thread locker and maybe stronger brackets, but for normal truck/ATV use, it feels solid enough. So, durability so far: good for the price, but I wouldn’t expect it to be on the same level as high-end bars that cost three to four times more. Time will tell, but nothing obvious has failed or loosened yet.

Performance-wise, this is where the CO LIGHT bar actually does pretty well for the price. Once you flip it on, there’s no doubt it’s much brighter than stock headlights. On a dark country road, it lights up the lane and both shoulders clearly out to a decent distance. You can see signs and reflective markers far ahead, and obstacles on the side (like animals or branches) pop out much earlier than with just low or high beams.

The beam pattern, though, is not super refined. It’s advertised as a spot/flood combo, and technically that’s true, but the transition between the center and the sides is not very smooth. You get a strong hot spot in the middle and a wide wash of light around it, but it’s not as evenly spread as more expensive bars. On trails or at low speeds, that’s not a big deal; you just see a lot of stuff. At higher speeds, the scattered light can create a bit of glare, especially if there’s dust, fog, or light rain. I also noticed some light reflecting on the hood edge, which can be a little distracting.

The color temperature is a cool white (around 6500K). It makes everything look very clear and crisp, but it can be harsh in fog or snow, where a slightly warmer white would be easier on the eyes. After about 30–40 minutes of continuous use, the bar was warm but not burning hot, and the brightness didn’t seem to drop in any obvious way, so the heat management is doing its job reasonably well.

Overall, I’d say the performance is strong in raw brightness, decent in beam reach, and just okay in beam control. If you’re not super picky and just want a lot more light than your stock setup, it gets the job done. If you’re sensitive to glare or want a very precise pattern (for fast off-road driving or rally-style use), you’ll probably notice the limitations. For night farm work, slow trail runs, or lighting up a job site, it’s more than enough.

Out of the box, the CO LIGHT 20-inch bar is pretty straightforward. You get the light bar itself, a pair of mounting brackets with hardware, and that’s about it. No wiring harness, no switch, no relay. So right away, plan to either buy a universal wiring kit or build your own setup with a relay, fuse, and switch. For the price level, I wasn’t shocked, but it’s worth knowing before you start the install.

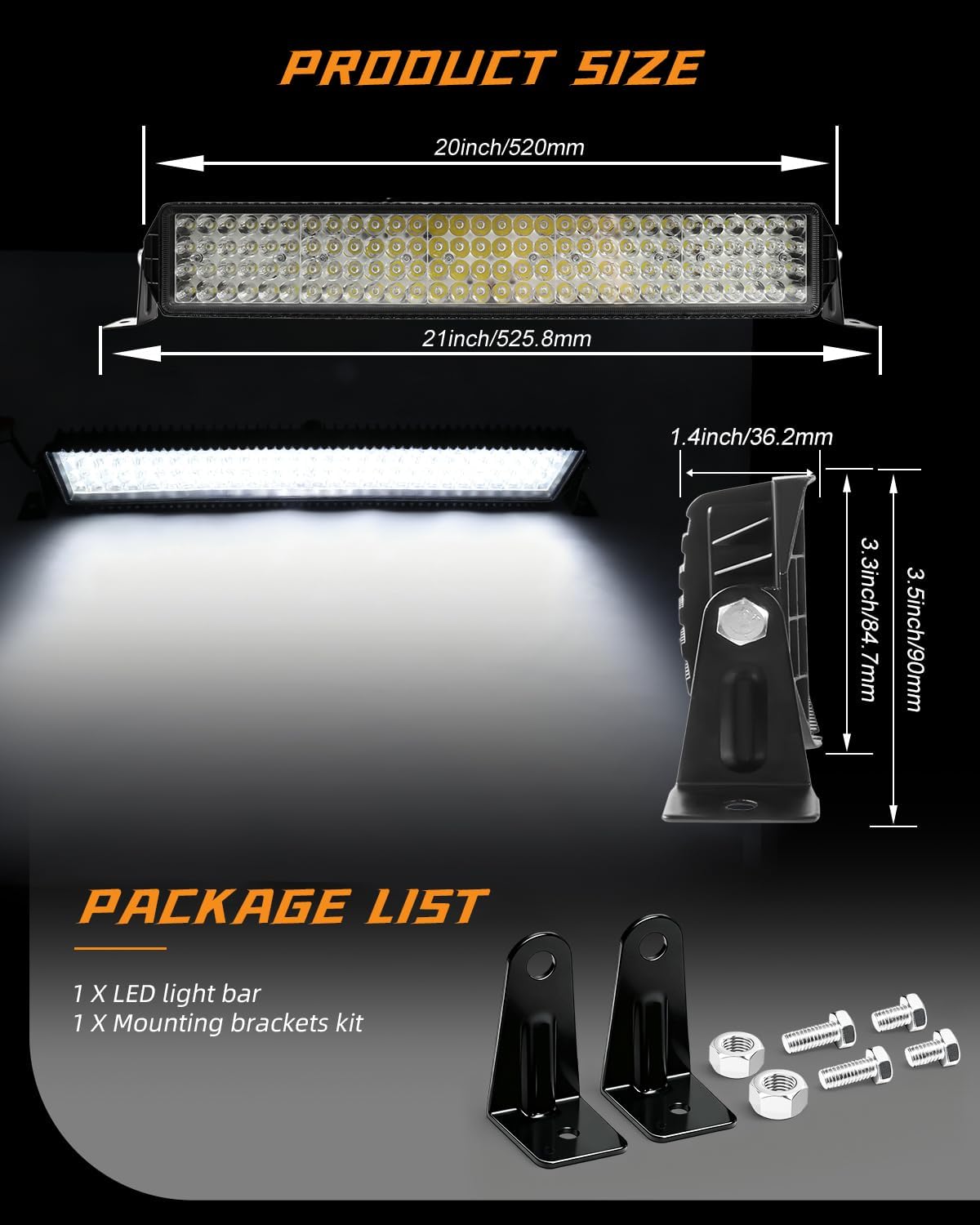

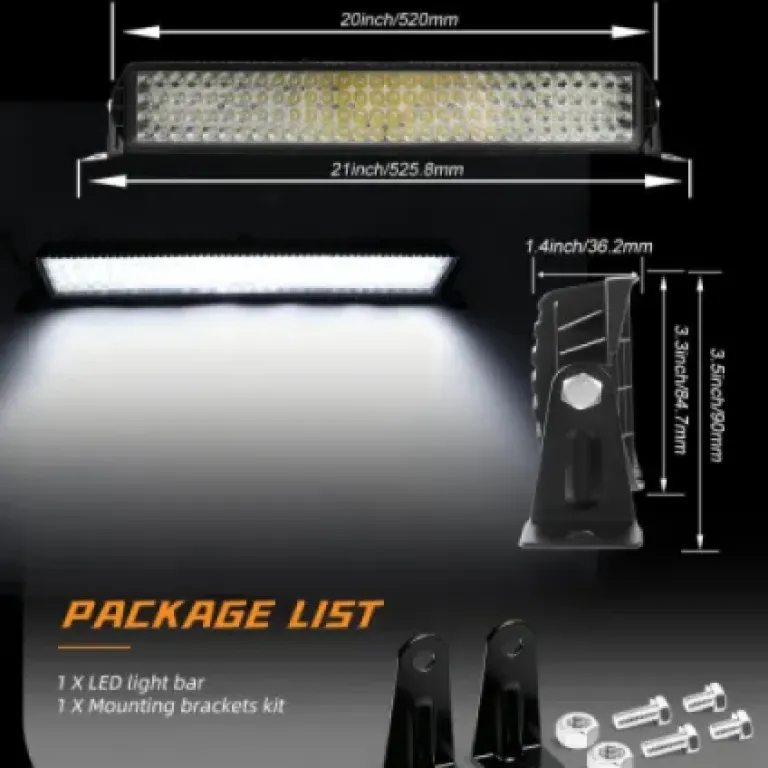

The bar is listed as around 55.3 cm long, 9.5 cm wide, and 5.2 cm high. In practice, with the brackets, it takes a bit more space, especially in height once you angle it. Measure your bumper opening, grille, or roof rack before buying because 20 inches sounds small on paper but with the 4-row design, it’s not a slim bar. The weight (about 1.2 kg) feels reasonable; it’s not super heavy, but not toy-like either. Once mounted, it doesn’t wobble if you tighten it properly.

The advertised 8000 lumens and 6000–6500K color temperature seem roughly in the right ballpark. It’s clearly brighter than a pair of cheap single-row pods I had before. Compared to a more expensive name-brand 20-inch bar, it’s a bit less intense and less focused, but you can tell the LEDs are not bottom-of-the-barrel. The beam is a spot/flood combo, but honestly, it feels more like a wide flood with some extra throw in the center rather than a sharp spot.

Overall, the product is presented as a multi-purpose bar for trucks, SUVs, ATVs, UTVs, boats, and work machines, and that’s accurate. It runs on 9–30V, so you can stick it on pretty much anything with a 12V or 24V system. Just don’t expect a complete kit in the box. It’s more of a bare-bones light with basic brackets. If you’re okay sourcing your own wiring and don’t mind a bit of DIY, it’s fine. If you thought you’d just plug and play, you’ll be a bit disappointed.
