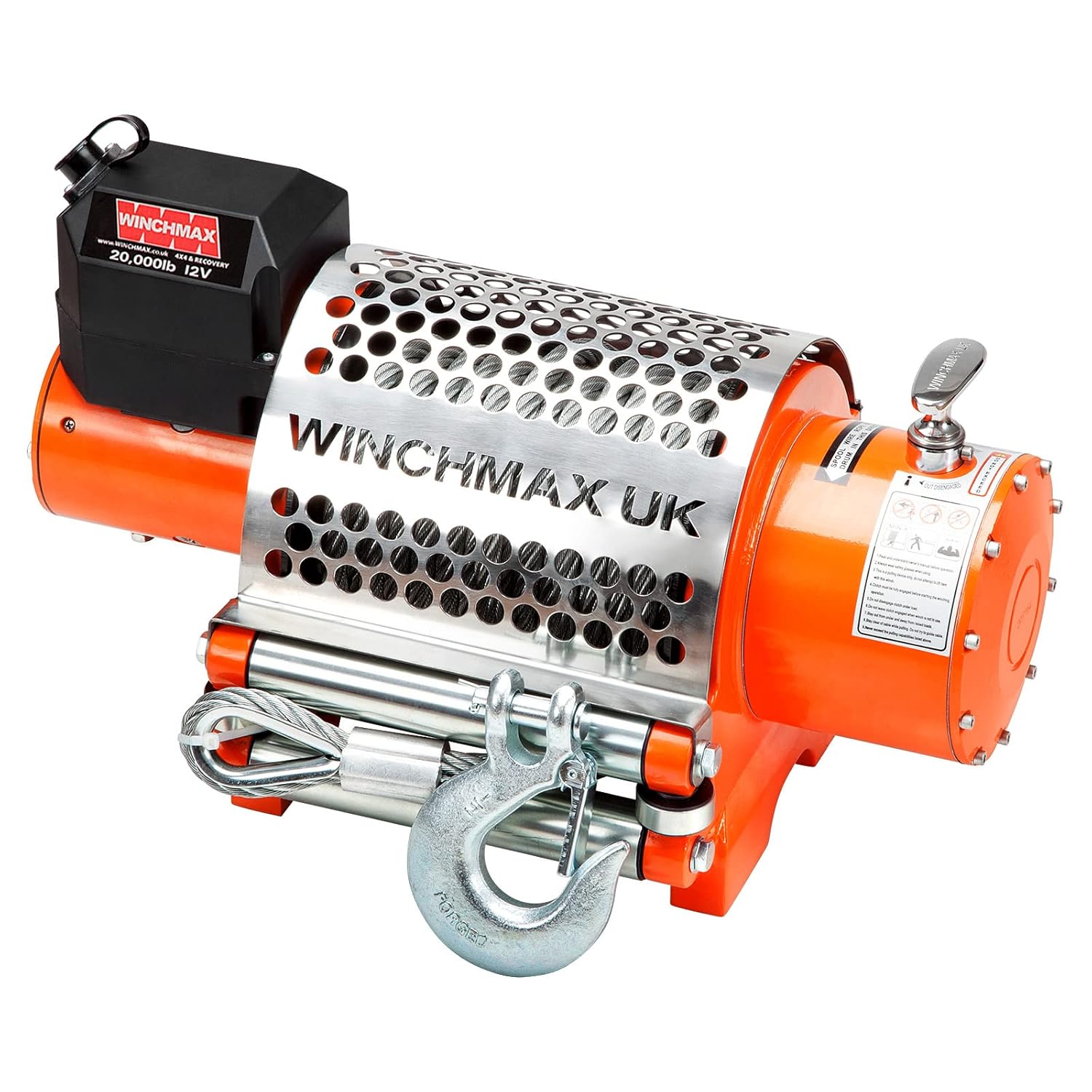

WINCHMAX 20,000lb 12v Electric Winch Review: heavy brute for serious recovery work

I’ve been using the WINCHMAX 20,000lb Original Orange 12v winch on a recovery truck for a little while now, and the short version is: it’s a heavy brute that does what it says. No fancy gimmicks, just a big motor, thick steel rope, and enough pull to drag dead vans and loaded trailers without feeling like it’s about to die. If you’re used to 9,500 or 13,500 lb winches, this thing feels like stepping up a weight class.

First thing to know: it’s not small and it’s not light. The whole package is around 76 kg, so don’t expect to just throw it on a bumper by yourself. I fitted it to a recovery truck bed, not a light 4x4 bumper, and I’m glad I did. The mounting needs to be solid, and you want proper reinforcement if you’re planning to use the full capacity. This is more for recovery trucks and heavy 4x4 builds than for show.

In real use, I’ve pulled a dead Transit up a beavertail, dragged a stuck pickup out of wet grass, and repositioned a loaded trailer on uneven ground. The winch didn’t sound stressed, didn’t overheat on these short pulls, and the steel rope stayed tidy on the drum as long as I guided it properly. It’s not magic, you still need to know how to winch, but the motor clearly has enough grunt for normal recovery jobs.

It’s not perfect. The weight is a pain, the steel rope is heavy and needs respect, and the wireless remotes feel more "work tool" than "premium gadget". But if you want a straightforward 12v winch that can handle serious loads without costing as much as some hydraulic setups, this one is pretty solid. Just don’t buy it for looks or to pose in a car park – it’s built to work, not to impress your Instagram followers.

On value, you have to be honest about what you actually need. A 20,000lb 12v winch is overkill for most casual 4x4 users. It’s aimed at recovery trucks and people who regularly deal with heavy vehicles up to around 3.5 tons, sometimes in tricky situations. If that’s you, then the extra capacity and thicker rope make sense, and the price starts to look reasonable. You’re basically paying for more motor, more metal, and more safety margin.

Compared to some big-name brands with similar ratings, the WINCHMAX usually comes in cheaper while still giving you the key features: high capacity, galvanized steel rope, forged hook, wireless remotes, and a cover. You’re not getting fancy branding or a super polished manual, but you’re also not paying for that. For a working truck where the winch is a tool, not a status symbol, that trade-off is fine. The fact that it includes both wireless and wired controls plus a decent-length steel rope straight out of the box means you’re not immediately spending extra on add-ons.

Where the value drops a bit is if you don’t really need 20,000 lb. If you’re just pulling the odd 4x4 out of a muddy lane a couple of times a year, a 9,500 or 13,500 lb winch with synthetic rope might be cheaper, easier to install, and nicer to handle. This WINCHMAX is heavy, needs a strong mounting setup, and draws a lot of current. So if your use is light, you’re paying for capacity you won’t use and dealing with the downsides anyway.

For my use – regular recoveries, dead vans, and awkward loads – the value feels good. It’s not dirt cheap, but it’s also not priced like some of the big premium brands. It sits in that "workhorse" zone: good enough quality, proper pulling power, and sensible extras for a fair price. If you’re running a recovery truck or a serious offroad rig and you actually use your winch often, it’s good value for money. If you’re a weekend warrior who wants something mainly for peace of mind, I’d say look at a smaller, lighter unit instead.

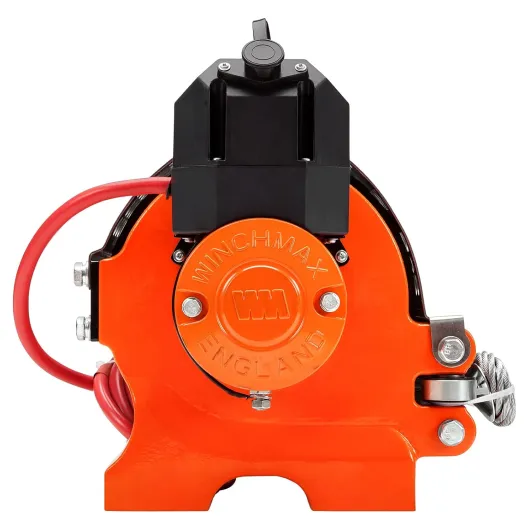

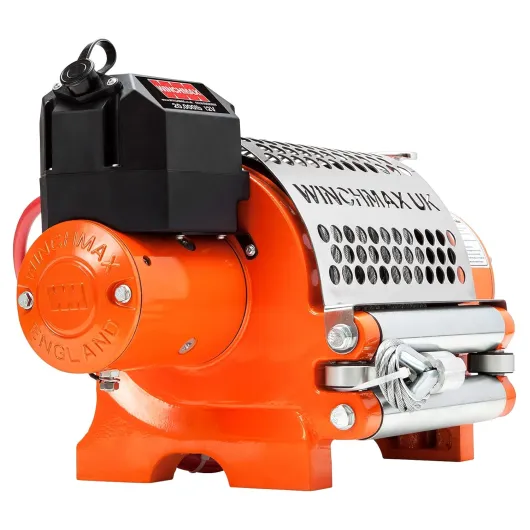

Design-wise, the WINCHMAX 20,000lb is pretty straightforward: it’s a big orange lump with a drum, motor on one side, gearbox on the other, and a control box you can mount either on top or separately, depending on your setup. The orange paint is their trademark look, and to be honest, I don’t really care what color it is as long as it works. But on the plus side, the bright color does make it easier to see in low light when you’re working around it.

The dimensions are fairly standard for a high-capacity electric winch, but the overall feel is "oversized" compared to typical 9,500 or 13,500 lb units. That matters for mounting: you need a solid plate and decent space, especially with that 14mm cable taking up a lot of drum room. On my recovery truck, it sits nicely at the front of the bed, but I had to pay attention to cable routing, fairlead position, and keeping the angles clean so it doesn’t chew the rope on the sides.

Control-wise, you’ve got in/out via wireless or wired remote, no fancy modes or extras. That’s fine by me. Fewer electronics usually means fewer problems in the long run. The control box is a bit bulky but normal for this size of winch. It’s also not the prettiest thing, but once it’s bolted down you forget about it. The hook is a 1/2 inch Grade 70 forged clevis with a safety catch, and it feels solid. The latch isn’t some flimsy toy, it snaps shut properly and doesn’t bend or flex when under load.

If I had to nitpick the design, I’d say the whole unit is clearly focused on function, not convenience. It’s heavy to maneuver during installation, the cable drum sits quite tight with that thick rope, and you really want two people to fit and line it up. But that’s the trade-off with a 20,000 lb rating. Compared to lighter 4x4 winches, it’s less compact and less "clean" looking, but that’s the price you pay for the extra capacity. For a recovery truck or serious offroad rig, the design makes sense: tough, visible, and simple to operate.

The materials on this WINCHMAX are clearly chosen for heavy use, not for saving weight. The 25m x 14mm galvanized steel rope is the main star here. At 14mm, it’s noticeably thicker than the usual 8–10mm cables you see on smaller winches. That gives you a good feeling of security when pulling heavier vehicles, but it also means the rope is heavy and stiff. You need gloves, and you need to respect it, because if a 14mm cable goes under tension and something goes wrong, it’s not a joke.

The hook is a 1/2 inch Grade 70 forged clevis with a safety catch and it’s zinc plated for corrosion resistance. In hand, it feels proper: heavy, solid, and not like cheap cast metal. The latch closes firmly and doesn’t wobble around. After a few wet, dirty jobs, there was no rust showing on the hook or the main exposed metal parts, which is what I’d expect but still good to see. The drum and main body feel robust, and the finish on the housing seems thick enough to handle road spray and stone chips without peeling straight away.

The winch comes with a branded cover, which is actually more useful than it sounds. On a recovery truck that lives outside, covers usually end up ripped or blown away. This one is decent: not bulletproof, but thick enough to keep most of the rain and grime off. I still wouldn’t rely on it alone for long-term storage in a salty environment, but for day-to-day road use it helps keep the worst of the muck off the winch and rope.

Overall, the material choice is on the "workhorse" side: galvanized steel rope, forged hook, zinc plating, solid housing. No lightweight synthetic line here, which some people will see as a downside. Personally, for a recovery truck that deals with rough edges, curbs, and unknown anchor points, I’m okay with steel. It’s not as pleasant to handle as synthetic, and it’s heavier, but it’s less fussy with abrasion and heat. If you want a light, easy-to-handle setup, you’ll probably prefer a synthetic rope model. If you want something that shrugs off rough treatment, this steel setup makes sense.

Durability is always a bit tricky to judge without years of use, but I can share how it’s been holding up so far. The winch has been mounted on a recovery truck that lives outside, used in rain, mud, and general UK road grime. The included WINCHMAX cover has been on most of the time when the truck is parked, and that does help. The orange paint is still intact, no big chips or flaking yet, and there’s no obvious rust creeping in on the main body or the mounting hardware.

The galvanized 14mm steel rope has seen a few dirty pulls and has been spooled in wet more than once. I’ve been trying to dry it when I can and respool it under light tension, and so far there’s no visible corrosion or flat spots. With steel rope, if you abuse it, it will bite you later with frayed strands and rust, but for now it looks fine. The hook still opens and closes cleanly, the latch hasn’t bent, and the zinc plating is doing its job. I’ve banged it against tow eyes and chains, and it just picks up normal scratches, nothing serious.

Electrically, the winch has behaved. The motor hasn’t overheated on the kind of pulls I’m doing (typical recovery jobs, not continuous winching for 20 minutes). The solenoids in the control box click as they should, and there’s no random loss of power. The wireless remotes have survived being dropped on the floor and shoved in pockets with keys and tools. They feel a bit cheap in the hand, but they’re not falling apart. I’d still treat them as consumables over a few years, but that’s true for most wireless remotes anyway.

Long-term, the main thing with a winch like this is regular checks: keep the rope in good condition, check mounting bolts, keep the electrics clean and dry where possible. The build quality feels decent enough that, if you look after it, it should last several years of regular use. If you abuse it, never clean it, and leave it uncovered in salty conditions, it will go downhill faster, like any other winch. But based on what I’ve seen so far, I’d say the durability is pretty solid for the price bracket and intended use.

On performance, this is where the WINCHMAX 20,000lb actually earns its keep. Rated at 20,000 lb (9,072 kg), it’s clearly aimed at recovery trucks and heavier 4x4s, not small SUVs. In practice, I’ve used it to pull dead Transits, a loaded trailer that refused to move on wet gravel, and a stuck pickup that had sunk slightly into soft ground. In all those cases, the winch didn’t feel like it was on the edge. The motor noise stayed consistent, no scary slowdowns or smells, and it just dragged the load in.

Obviously, like all winches, the real pulling power drops as the drum fills up with rope, so if you’re doing a long pull, you still want to keep as few layers on the drum as you can. But with 20,000 lb on paper, you’ve got a decent safety margin for 3.5 ton vehicles, especially on ramps or mild inclines. It’s not a crane, and you still need to use snatch blocks and proper rigging if you’re doing awkward pulls, but for straight recovery work, it’s more than enough. I haven’t managed to stall it in normal use so far.

The wireless remotes are handy for performance too. Being able to stand off to the side, see the whole setup, and control the winch without being tied to the truck is a big safety plus. The response is quick enough: you press in or out and it moves straight away, no annoying lag. The line speed isn’t crazy fast, but for recovery work I’d rather have steady and controlled than some speed demon that’s hard to manage. You’re usually guiding a vehicle onto a bed or out of a ditch, not trying to win a race.

If there’s a downside, it’s the power draw. On a 12v system, a 20,000 lb winch is always going to be hungry. You really feel it if your battery isn’t fresh or your alternator is weak. After a couple of longer pulls, I could see the voltage dropping a bit, so you need to keep the engine running and make sure your electrical system is up to the job. That’s not really a fault of this winch specifically, it’s just the reality of big electric winches. Overall, performance-wise, it’s solid: strong pull, steady speed, no drama, as long as the rest of your setup is built properly.

When you unbox the WINCHMAX 20,000lb winch, it’s pretty clear what you’re paying for: a big orange winch, a long and thick steel cable, a chunky 1/2 inch hook, and the usual wiring and controls. No fancy extras, but the basics are covered. The 25m x 14mm galvanized steel rope is the first thing that stands out. It’s thick, heavy, and feels like proper industrial kit, not the flimsy cable you see on cheap winches. You also get a branded winch cover, which is actually useful if the winch sits outside on a recovery truck exposed to rain and road grime.

The control setup is simple: you get twin wireless remotes and a backup wired control lead. The wireless remotes are small, plastic, and not exactly pretty, but they work and the range is decent. I could stand a safe distance away while loading a vehicle and still control the winch without any dropout. The wired remote is there as a backup, which I like, because batteries die and wireless remotes sometimes glitch at the worst time.

Out of the box, the wiring is straightforward if you’ve fitted a winch before. Big cables to the battery, control box, and motor terminals – nothing weird. The manual is okay, not super detailed, but enough if you already know the basics. If you’re a total beginner, you’ll probably end up watching a YouTube video anyway. One thing to note: this unit draws serious current, so you need a good battery and healthy alternator. This is not for a worn-out van with a tiny battery.

Overall, the presentation is practical: big capacity, thick rope, simple controls, and a cover included. No polished marketing gimmicks, just the stuff you need to install and start using it. If you’re expecting a super polished "premium" unboxing experience, this isn’t it. If you just want to bolt it on the truck and start pulling dead weight, it’s ready to go out of the box, as long as your mounting plate and electrics are up to the job.

Effectiveness for me is simple: does this winch make loading and recovering vehicles easier and more reliable than what I had before? Compared to the older 13,500 lb winch I was using, the answer is yes. With the WINCHMAX 20,000lb on the truck, I worry less about borderline pulls. Things like dragging a dead, fully loaded van up a wet steel ramp used to feel like I was pushing the old winch close to its limit. With this one, it feels more relaxed. The motor tone is calmer, and I’m not constantly glancing at the cable and mounts wondering if something is about to complain.

In practice, that translates to quicker jobs. I’m not messing around with multiple attempts as much, or repositioning the truck to find the perfect angle, because the winch has enough grunt to cope with less-than-ideal setups, within reason. The thick 14mm rope also gives a bit more confidence when you’re dealing with awkward anchor points or vehicles that don’t roll nicely. It’s not a license to be careless, but it does take some stress out of the job.

The twin wireless remotes also add to the effectiveness. On some jobs, I’ve had one person steering the dead vehicle while I stand off to the side with a clear view, operating the winch. Not having to shout over a wired remote cable or stand right next to the truck is genuinely useful. The backup wired remote is there if the wireless ones decide to throw a tantrum, which hasn’t happened to me yet, but it’s good to know there’s a plan B.

On the downside, the steel rope is heavier and slightly more awkward to handle than synthetic. Coiling it neatly, keeping fingers safe, and avoiding kinks requires a bit more attention, especially at the end of a long day. If you do a lot of short, frequent pulls where you’re constantly handling the rope by hand, you might prefer a synthetic setup. But for my use – mostly straight pulls onto a truck bed – the extra durability and thickness of the steel rope work in its favor. Overall, in terms of day-to-day effectiveness, it gets the job done and makes heavier recoveries feel less like a gamble.
