acegoo 12V Under Cabinet LED Lighting Review: compact 12V bar with handy dimmer and red night mode

I’ve been slowly wiring up a camper setup and needed a 12V light that could sit under a cabinet and double as a main work light and a night light. That’s how I ended up with this acegoo 12V under-cabinet LED bar. It’s the 305 mm version, 4000K, with the built‑in dimmer and red mode. I wired it straight to a 12V battery system, no fancy smart stuff, just a basic fuse and switch.

What attracted me was pretty simple: slim bar, integrated button, dimmable, and a red night light. I didn’t want extra dimmer modules, rotary knobs or remote controls that get lost. Just one bar I could screw to the cabinet and forget about. On paper, 4.5 W and 470 lumens sounded about right for a small van or over a kitchen worktop in a boat.

After actually using it, my opinion is mixed but mostly positive. The light output is decent, the 4000K colour is neutral enough, and the dimming is smooth. The red mode is more useful than I expected, especially when you get up at night and don’t want to blind yourself or wake everyone up. It’s not perfect though. The build is light, the IP20 rating means it’s not for damp spots, and there are some small annoyances with the switch logic and wiring.

If you’re expecting a heavy‑duty marine-grade fixture, this isn’t it. If you want a simple 12V bar that screws on and just works for basic indoor camper or boat use, it gets the job done. There are a few quality concerns (one Amazon user had one blow instantly), but mine has behaved so far. In short: pretty solid for the price, as long as you know its limits.

Looking at the feature list versus the price, I’d say this acegoo bar lands in the “good value, not cheap junk but not premium” category. For the cost of a basic 12V light, you’re getting: 4.5 W LED output (about 470 lm), integrated dimmer, integrated white/red colour modes, aluminium housing, and a slim form factor that’s easy to mount in tight spaces. If you tried to replicate this with a separate LED strip, dimmer, switch, and housing, you’d probably end up spending a similar amount and doing more wiring work.

Compared to very basic 12V puck lights or fixed non‑dimmable bars, this one is more flexible. The dimming and red mode alone make it more useful in real life. You can crank it up for tasks, then dial it down or switch to red at night. In a van or small boat, that’s exactly the kind of flexibility you want without adding extra components. On the flip side, compared to higher‑end marine fixtures, you’re missing proper waterproofing, heavier construction, and maybe better quality control. But those usually cost at least double.

Where the value is slightly held back is the IP20 rating and occasional quality issue mentioned in reviews. Knowing one user had a unit blow on first use doesn’t make you feel warm and fuzzy, even if most others are happy. For a permanent, mission‑critical installation on a bigger boat, I’d personally spend more for something rated for harsh environments. For a camper conversion, cabin lighting, or under‑cabinet kitchen light in a dry spot, this is perfectly acceptable and you’re getting a pretty feature‑rich bar for the money.

So overall, from a budget perspective: if you’re on a reasonable budget and you want dimming + red night mode in a compact 12V bar, this is a solid pick. If you’re chasing the absolute cheapest light, you can find simple 12V strips for less, but you’ll lose the integrated controls and nicer finish. If you want bomb‑proof marine stuff, you’ll have to pay more elsewhere. In that sense, it sits in a sensible middle ground.

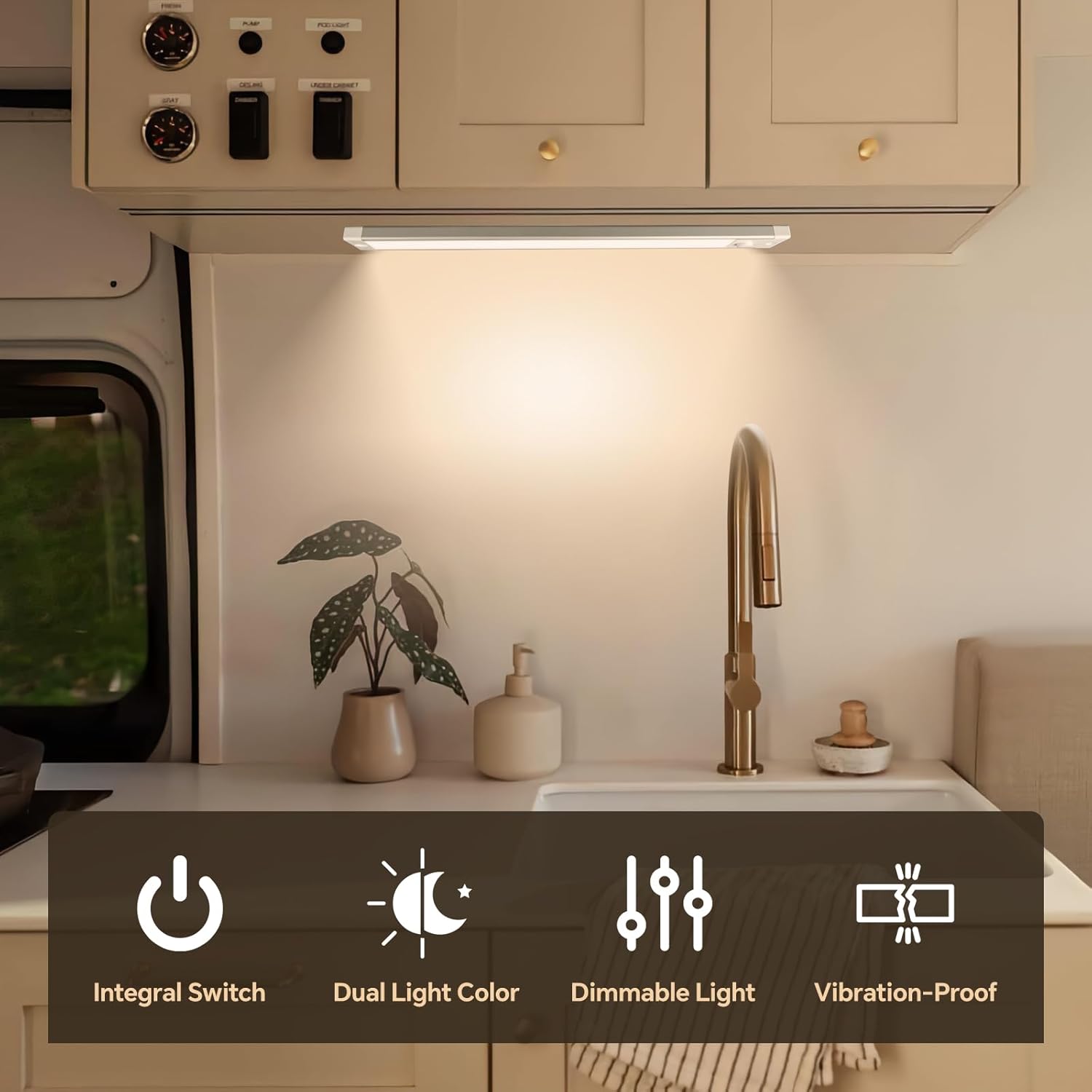

Design‑wise, this acegoo bar is minimalist and practical. It’s about 30.5 cm long, 3.5 cm wide, 1 cm thick, so it’s really low profile. Under a cabinet or along a ceiling panel in a van, it doesn’t stick out much and doesn’t get in the way. The silver aluminium with white diffuser looks neutral enough to match most interiors. It’s not pretty, but it doesn’t look cheap once it’s mounted either. More “functional RV part” than “designer lamp”, which is what I expected.

The surface-mount system is straightforward: you screw the base to the surface, hide the wiring, then clip the bar so the screws and wires are not visible. Once installed, it looks clean, with no dangling cable or visible head of screws. The fixture is quite light, which is good for vehicles, and it feels reasonably solid when you tap it. There’s no creaking or obvious gap between the diffuser and the body on mine. That said, it’s clearly not sealed, and the IP20 rating confirms that: it’s for indoor, dry areas only. So yes for cabin ceilings, under cupboards and wardrobes; no for exposed bathrooms, cockpits or anywhere that gets spray.

The integrated button is placed on the bar itself, which is both convenient and slightly annoying depending on where you mount it. Under a cabinet, you end up reaching under and hunting for the button, which is fine once you know where it is. On a ceiling, it’s a bit more of a stretch, especially if you mount it above a bed. Personally, I’d prefer the option of a remote low‑voltage switch input, but at this price point you get the one‑button‑does‑all solution. Also, the control is listed as “touch”, but it’s really more of a small push button, not a capacitive touch panel.

One weird point in the specs: it mentions an E27 bulb base, which doesn’t match reality at all. This is a fixed LED strip inside an aluminium bar; you can’t swap a bulb. So ignore that part of the listing. From a design point of view, the light spread is fairly even, with no harsh hotspots, and the bar length gives a nice line of light along a worktop. For tight spaces like camper kitchens, navigation stations or wardrobes, the shape and size make sense. Just keep in mind: clean, slim design, but built for dry indoor use, not harsh marine conditions.

The bar is mostly aluminium with a plastic diffuser, and for a light this small and light, that’s fine. It doesn’t feel like a tank, but it doesn’t feel flimsy either. The aluminium profile gives it a bit of rigidity, so it doesn’t flex when you handle it or when you screw it in. The finish is polished/silver, and there were no sharp edges or dodgy burrs on mine. The diffuser clips on cleanly and spreads the light fairly evenly, so you don’t see the individual LEDs glaring at you.

Where I pay attention on 12V gear is wiring and connectors. This one is hard‑wired, so you just get two bare wires coming out the back. The cable is thin but adequate for 4.5 W at 12 V (you’re talking under half an amp), so no issue there. You do need to provide your own connectors, crimps or terminal block, and of course a fuse in your circuit. There’s no quick‑connect plug, which is slightly annoying if you like modular setups, but it keeps the fixture compact. Just plan your wiring route before you screw it in, because once it’s up, getting to the wires is a bit of a pain.

The IP20 rating is the big limitation. This thing is not sealed. No gasket, no rubber caps, nothing. So in a galley or bathroom that gets steam or spray, I’d either mount it in a relatively protected spot or choose something rated at least IP44. On a boat, I’d keep it strictly for indoor cabins and nav stations, not exposed cockpits. The Amazon review where one unit “blew instantly” is a bit worrying, but that can be a bad unit or an issue with the driver used; hard to say. Mine has been fine so far, but I wouldn’t call it industrial‑grade.

Overall, the materials and build match the price: aluminium body, basic but decent plastics, simple wiring. It’s not junk, but it’s also not built like high‑end marine fixtures that cost three times more. If you mount it properly and keep it out of wet zones, I don’t see a big problem. Just don’t expect it to survive years of humidity, salt spray and abuse without any protection.

I haven’t had this bar for years, but I’ve run it enough to get a feel for heat and general behaviour. After a long evening on full brightness, the aluminium body gets warm but not hot. You can still touch it comfortably, which is a good sign for LED lifespan. Excess heat is usually what kills LEDs and drivers, so the fact that it only gets mildly warm reassures me a bit. The low power draw (4.5 W) also helps here; it’s not stressing the components too much.

That said, I’m not going to pretend it’s bulletproof. The limited warranty and IP20 rating tell you clearly the brand doesn’t position this as a heavy-duty, outdoor, or marine‑grade light. Indoors in a camper, boat cabin or wardrobe, I expect it to last a few years without drama, as long as the 12V supply is clean and fused correctly. On Amazon, most reviews are positive, including one person using it for two years at a boat steering position with no issues, which is encouraging. But there is also that one review where one of two units failed instantly, which shows quality control may not be perfect.

The integrated electronics (dimmer + colour control) are all inside the bar. That’s convenient, but it also means if something fails, you replace the whole unit, not just a driver module. There’s no way to open it easily and service it without probably damaging something. In a camper build, that’s acceptable to me: if it dies, I unscrew it and change it. On a more serious boat installation where reliability is critical, I might spend more on a brand with a longer track record and higher IP rating.

So in terms of durability, I’d rate it as adequate for light to moderate use: daily use in a van or boat cabin, no constant humidity, and decent electrical protection. I wouldn’t put it in a shower, above a stove with lots of steam, or somewhere that sees regular condensation. Treat it as a mid‑range RV fixture, not as a professional marine light, and your expectations will be about right.

In day‑to‑day use, the 470 lumens feel honest. I mounted it over a small galley area and tried it also above my camper table. At full power, it gives you enough light to chop food, read, or work on a laptop without straining your eyes. It’s not floodlight bright, but for a 4.5 W bar, it’s solid. The 4000K white is neutral, which I like: food doesn’t look weird, and your eyes don’t get that yellowish or bluish cast. Compared to a cheap 12V strip I had before, this one is clearly brighter and more focused.

The dimming is where this bar is actually quite practical. You hold the button to dim up or down, and it goes from a low glow to full brightness fairly smoothly. I didn’t notice flicker or jumps in brightness. For evenings, I keep it at about 30–40% and it’s comfortable enough to relax without the van feeling like an office. At full blast, it draws the full 4.5 W, which is not much on a leisure battery, and at lower levels it obviously uses even less. For anyone caring about battery life, that’s a plus: you’re not wasting power when you only need a bit of light.

The red night light is more than a toy. In red mode at low level, I can move around the van, find stuff, check a chart or the time without my eyes having to fully readjust. On a boat, this is even more relevant: one Amazon user mentions using it for night driving at the helm, and that lines up with my experience; the red is strong enough to be useful but not so bright that it ruins night vision. It also helps if someone else is sleeping and you don’t want to light up the whole cabin in white.

The only annoyance is the control sequence to switch between white and red and to dim. If you’re tired or in a hurry, you sometimes overshoot the mode you want. It’s not complicated, it’s just not super intuitive on first use. A tiny separate toggle for colour would have been nicer, but then you’d lose the clean one‑button look. Overall, performance is pretty solid for a 12V bar in this price range: good brightness, useful red mode, and dimming that actually works in a smooth way.

Out of the box, it’s very bare‑bones: you get the 305 mm aluminium light bar, a couple of mounting bits/screws, and that’s about it. No power supply, no fancy manual, just a simple 12V bar you’re supposed to hard‑wire. The unit is very light (around 240 g), and the housing is aluminium with a white diffuser on the front. It looks more like something you’d expect in a caravan than a design lamp in a living room, which is fine given what it’s made for.

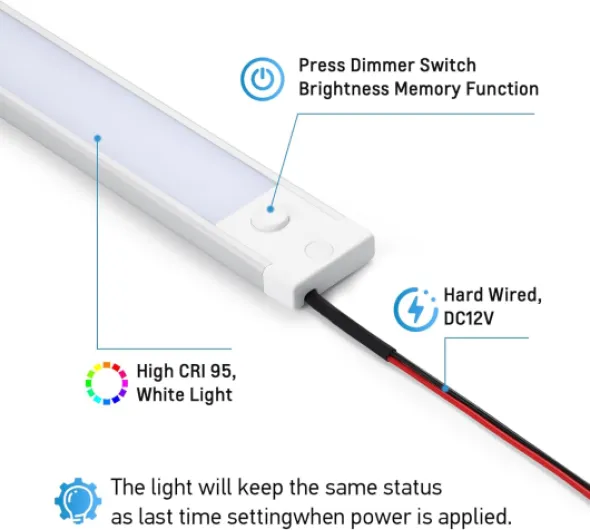

The key feature is the integrated push button on the bar. That single button does on/off, dimming and colour switching (white ↔ red). You don’t need an external dimmer or extra switch on the wall if you don’t want one. In practice, you press once for on/off, and hold to dim. A longer press or a sequence lets you change between white and red. It takes a few tries to get used to the sequence, but once you’ve got the muscle memory, it’s okay. Just don’t expect the logic of a high‑end touch panel.

On the white setting, the light is rated at 470 lumens for 4.5 W, which lines up with what I see: it’s bright enough over a small kitchen counter or a camper table, but it’s not going to light a big room. In my van corner (about 1.5 m wide), one bar is fine for cooking or reading when set to full brightness. If you’ve got a longer galley or larger boat cabin, you’ll probably want two or three bars spaced out. The 4000K colour temperature feels neutral – not that cold blue office vibe, but not warm yellow either.

The red light mode is more than a gimmick. It’s strong enough to move around safely, check charts or get a glass of water without smashing your toes. It also doesn’t kill your night vision, which is handy on a boat or in a camper when you’re in the middle of nowhere. Overall presentation: simple, functional, no nonsense, but also nothing fancy. It’s a straightforward 12V bar that does what the spec sheet says, with a couple of quirks you only notice after real use.
